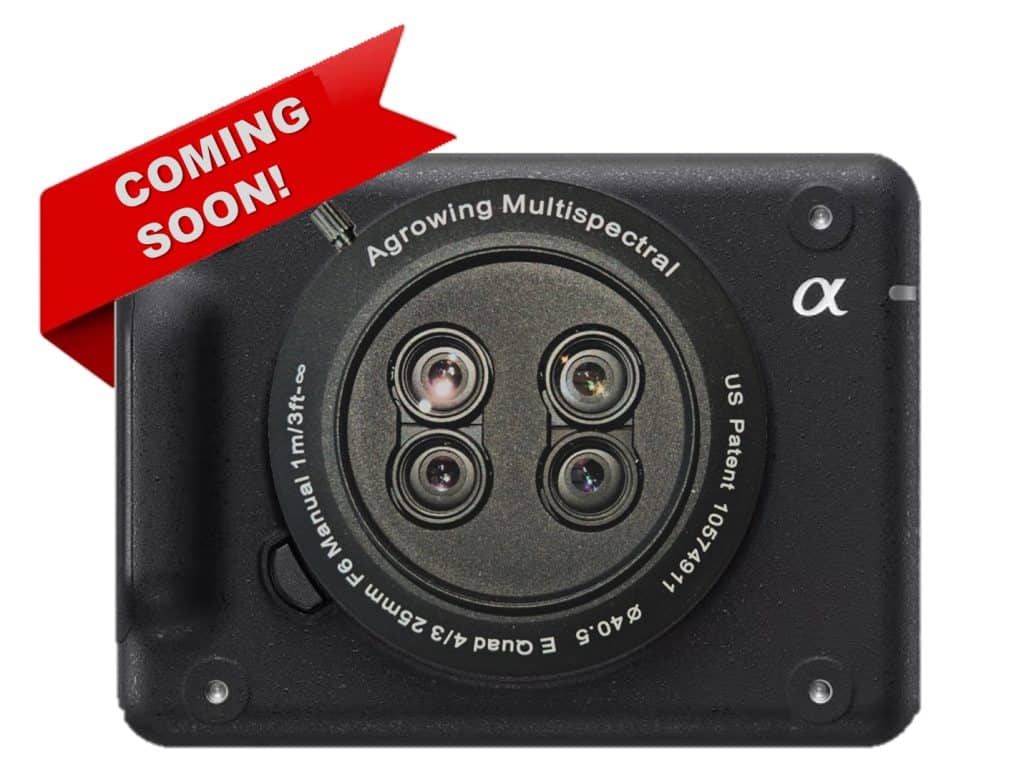

Agrowing Lightweight 25quad
61MP RGB Mapping - 11x12MP Multispectral Bands
The latest lightweight Dual Purpose mapping solution for UAVs.
243gr. body + 181gr. multispectral lens.
RGB 61MP mapping or 10 band Multispectral of 12MP per band or 9 Bands + Wide RGB*
Full-Frame E-Mount
Based on modified Sony ILX-LR1.
*Resolution based on Sony’s sensor effective pixels after demosaicing, alignment, and cropping.
Type:
Quad lens single mount
Field of view:
Diagonal 46.0 Horizontal 40.7 Vertical 27.60
TV distortion:
<1%
Multi Spectral
Chroma Bands
30nm wide
405;430;450;550
560;570;650;685
710;850
* customized for best performance
Relative
Illumination:
68%
Effective focal length:
25mm
F-Stop
6.0
Focus type and range:
Manual 0.5m - infinity
Lens dimension: (ØxLxW)
64.6 x 31.5mm
Total sensor weight including lens
424gr (243+181)
ff
Agrowing's Alpha FF based sensors, based of Sony's FF 61MP cameras offer 10 bands of 12 Megapixels each. The sensor can be used as a 61MP mapping camera using a clip-in IR cut filter.
ff
Agrowing's Quad for ILX LR1 kits include cleaning tools and also a IR-Cut 615nm filter, which enables using the camera as a standard RGB camera with any Sony FF compatible lens.
