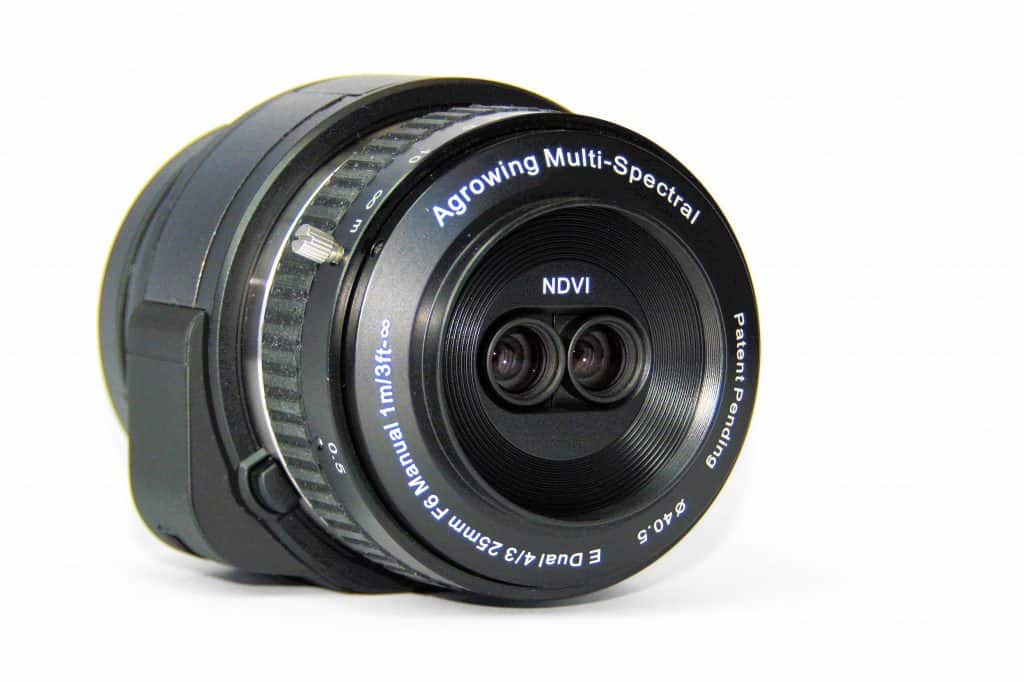

ADTi 24 Dual

ADTi RePacked Sony Alpha 24MP BASED

226gr including lens

10 Megapixel per Channel

NDVI/Red-Edge lenses

5 Narrow Bands

for APS-C E-Mount

Type:

Dual lens single mount

Field of view:

Diagonal 45.90 Horizontal 35.0 Vertical 26.60

Spectral Bands:

40nm wide
450;550;650;850nm NDVI lens
450;550;710;850nm Red-Edge lens

TV distortion:

<1%

Effective focal
length

25mm

Relative
Illumination:

68%

Focus type:

Manual

Iris:

fixed F6

Focus range:

2m - infinity

Lens dimension: (ØxLxW)

60x35.2 mm

F number:

6.0

Lens weight: (assessment)

135 gr.

Total sensor weight including battery:

266 gr. including lens

ff

Agrowing's ADTi 24 mapper based sensor provides 10 Megapixels per band multispectral imagery of ultra dynamic range, With 1.7 cm per pixel. Agrowing's sensor provides incredibly detailed NDVI maps, which enable early detection of outlying/abnormal areas in the field.

ff

Agrowing's MCU R 10 C based sensor provides mukltispectral imagery of sub 0.5 mm per pixel from 3 m altitude. Such detailed multispectral imagery enables implementing AI techniques for isolation, classification and identification of irregularities like Blight, Alternaria, Colorado Beetle and the like.
