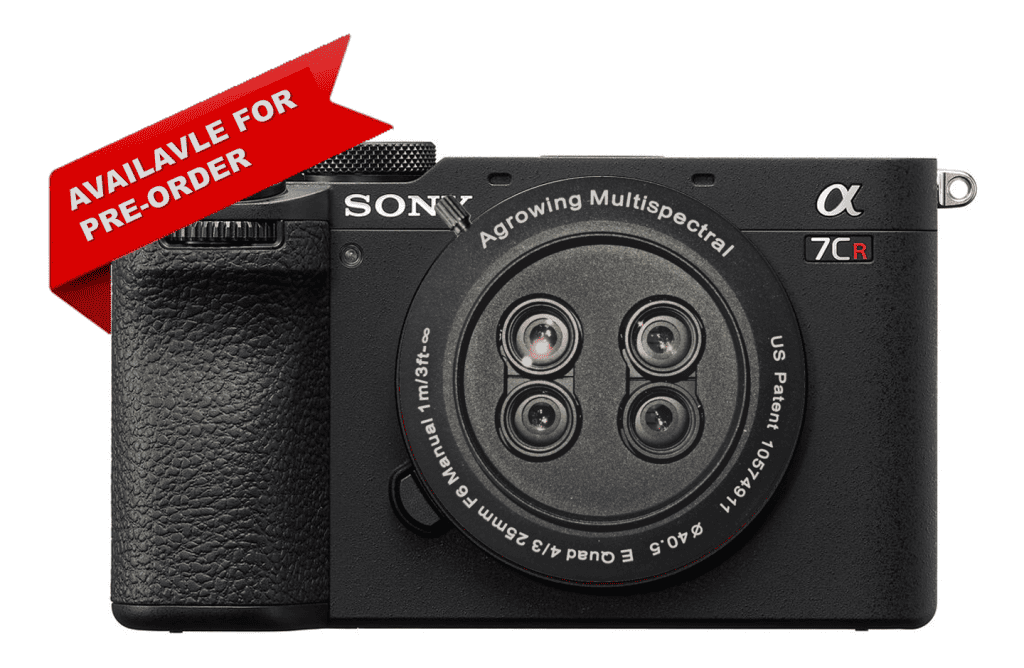

Agrowing's top QUAD
The Award-Winning Sensor in a New Body
61MP RGB or 12 MP per band (A7CR)
NDVI/Red-Edge
10 Narrow Bands or 9 Bands + Wide RGB*
for Full-Frame E-Mount
Based on modified Sony A7CR
*Resolution based on Sony’s sensor effective pixels after demosaicing, alignment. and cropping.
Type:
Quad lens single mount
Field of view:
Diagonal 46.0 Horizontal 40.7 Vertical 27.6
TV distortion:
<1%
Multi Spectral
Chroma Bands
30nm wide
405;430;450;550
560;570;650;685
710;850
* customized for best performance
Relative
Illumination:
68%
Effective focal length:
25mm
F stop
6.0
Focus type and range:
Manual 0.5m - infinity
Lens dimension: (ØxLxW)
64.5x31.5 mm
Total sensor weight including battery:
705gr (A7CR)
Patent pending; specification may be changed
ff
Agrowing's Alpha 7Rxxx based sensor has two resolution versions. The A7Riv based sensor is of 12 Megapixels per band, while the A7Rii/iii based sensor is of 8 Megapixels per band.
ff
Agrowing's Alpha 7CR kits incvlude cleaning tools and also a IR-Cut 615nm filter, which enables using the camera as a standard Alpha 7CR camera with any Sony FF compatible lens.
