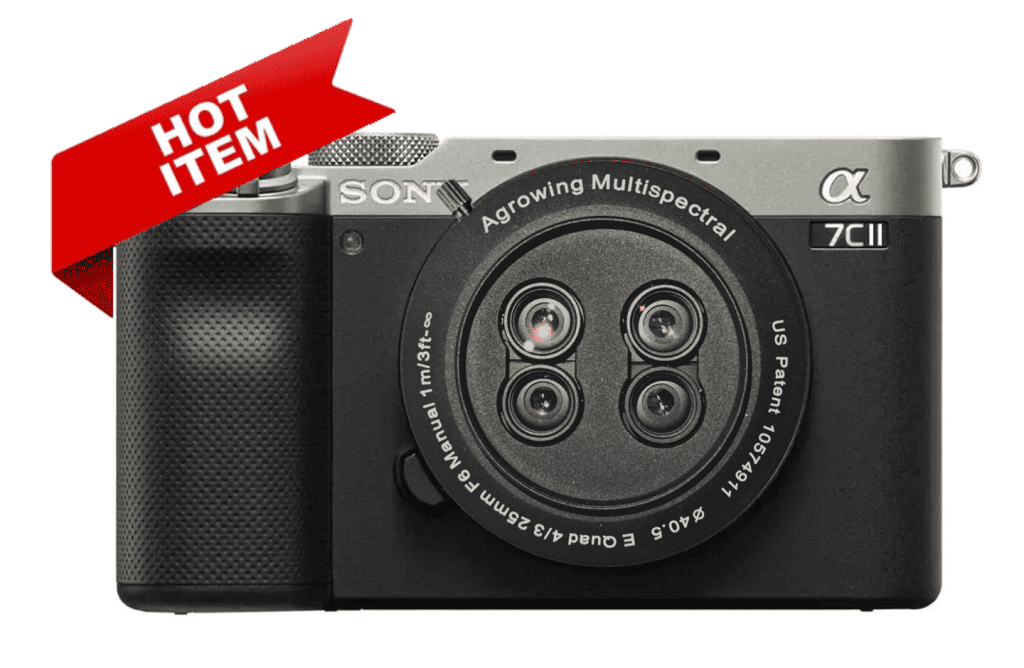

ALPHA 7CII QUAD

33 MP RGB Mapping - 10x7MP Multispectral Bands





7 Megapixel per band (A7CII)

NDVI/Red-Edge

10 Narrow Bands or 9 Bands + Wide RGB

for Full-Frame E-Mount

Type:

Quad lens single mount

Field of view:

Diagonal 45.90 Horizontal 35.0 Vertical 26.60

Multi Spectral Chroma Bands

30nm wide
405;430;450;550
560;570;650;685
710;850

* customized for best performance

Relative
Illumination:

68%

Effective focal length:

25mm

Focus type and range:

Manual focus 2m - infinity

Lens dimension: (ØxLxW)

60x35.2 mm

Total sensor weight including battery:

Weight 705gr (A7CII)

ff

Agrowing's Alpha 7Rxxx based sensor has two resolution versions. The A7Riv based sensor is of 12 Megapixels per band, while the A7Rii/iii based sensor is of 8 Megapixels per band.

ff

Agrowing's Alpha 7Rii/ii/iv kits incvlude cleaning tools and also a IR-Cut 615nm filter, which enables using the camera as a standard Alpha 7$xxx camera with any Sony FF compatible lens.
