The affordable Dual-Purpose RGB/Multispectral sensor
10 Megapixel per Channel
NDVI/Red-Edge
4/5 Narrow Bands
24 Megapixel RGB
for APS-C E-Mount

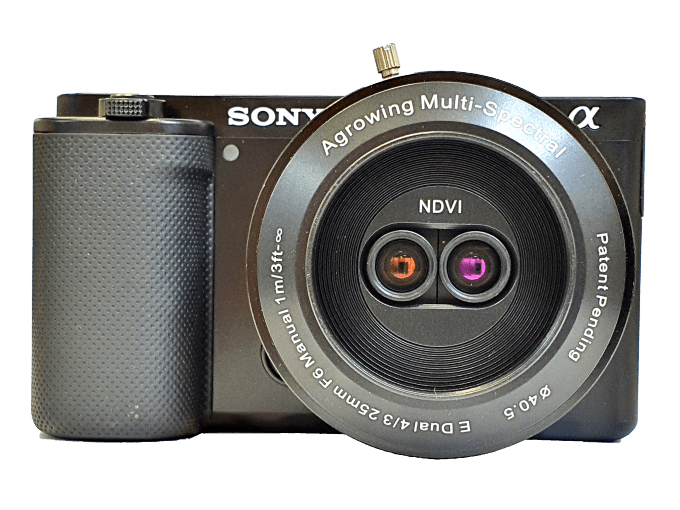

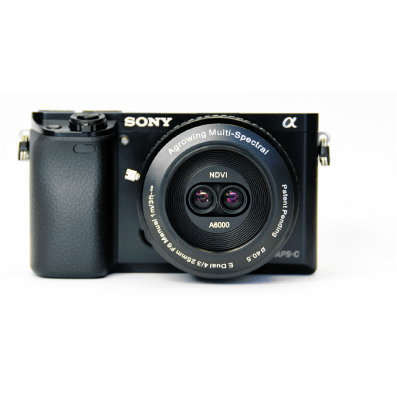

Based on modified Sony ZV-E10/Alpha 6xxx
Type:
Dual lens single mount
Field of view:
Diagonal 45.90 Horizontal 35.0 Vertical 26.60
NDVI lens
Spectral Bands:
40nm 450;550;650;850nm
TV distortion:
<1%
Red-Edge lens
Spectral bands
40nm 450;550;710;850nm
Relative
Illumination:
68%
Effective focal length:
25mm
Iris:
fixed F6
Focus type and range:
Manual 2m - infinity
Lens dimension: (ØxLxW)
60x35.2 mm
F number:
6.0
Lens weight: (assessment)
144 gr
Total sensor weight including battery:
540 gr A6100 487 gr ZV-E10
ff
Agrowing's ZV-E10/A6x00 based sensor provides 10 Megapixels per band multispectral imagery of ultra dynamic range, With 1.5 cm per pixel. Agrowing's sensor provides incredibly detailed NDVI maps, which enable early detection of outlying/abnormal areas in the field.
ff
Agrowing's ZV-E10/A6x00 based sensor provides mukltispectral imagery of sub 0.5 mm per pixel from 3 m altitude. Such detailed multispectral imagery enables implementing AI techniques for isolation, classification and identification of irregularities like Blight, Alternaria, Colorado Beetle and the like.
