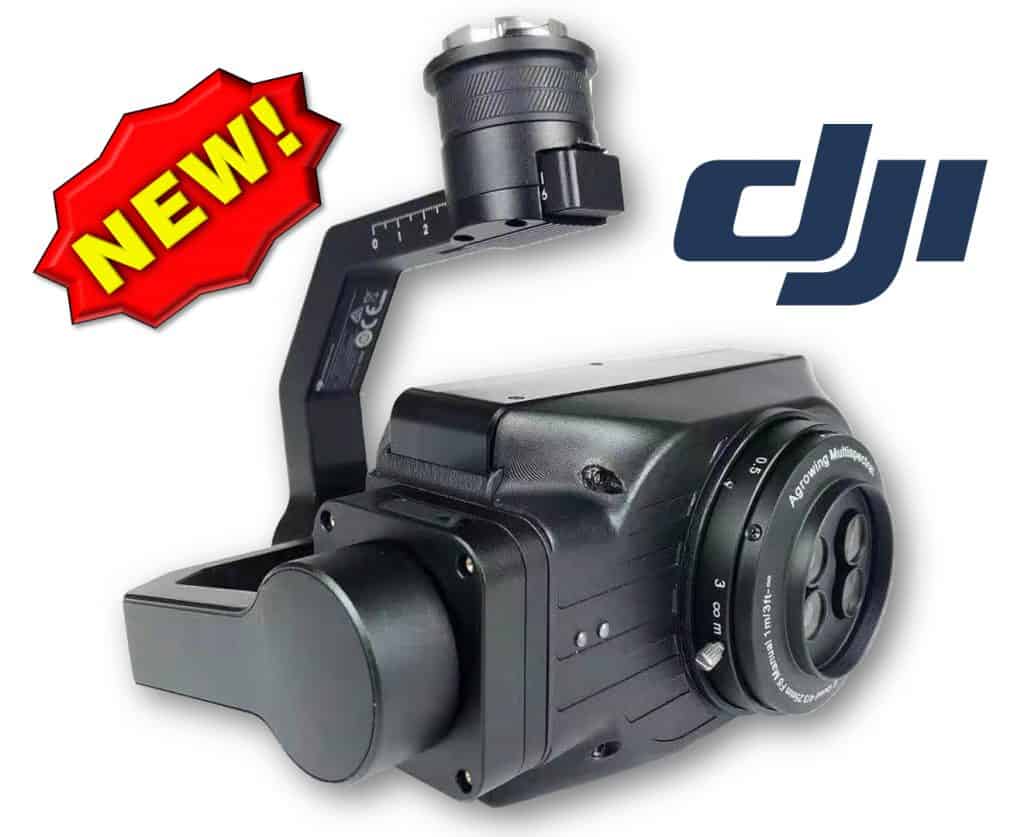

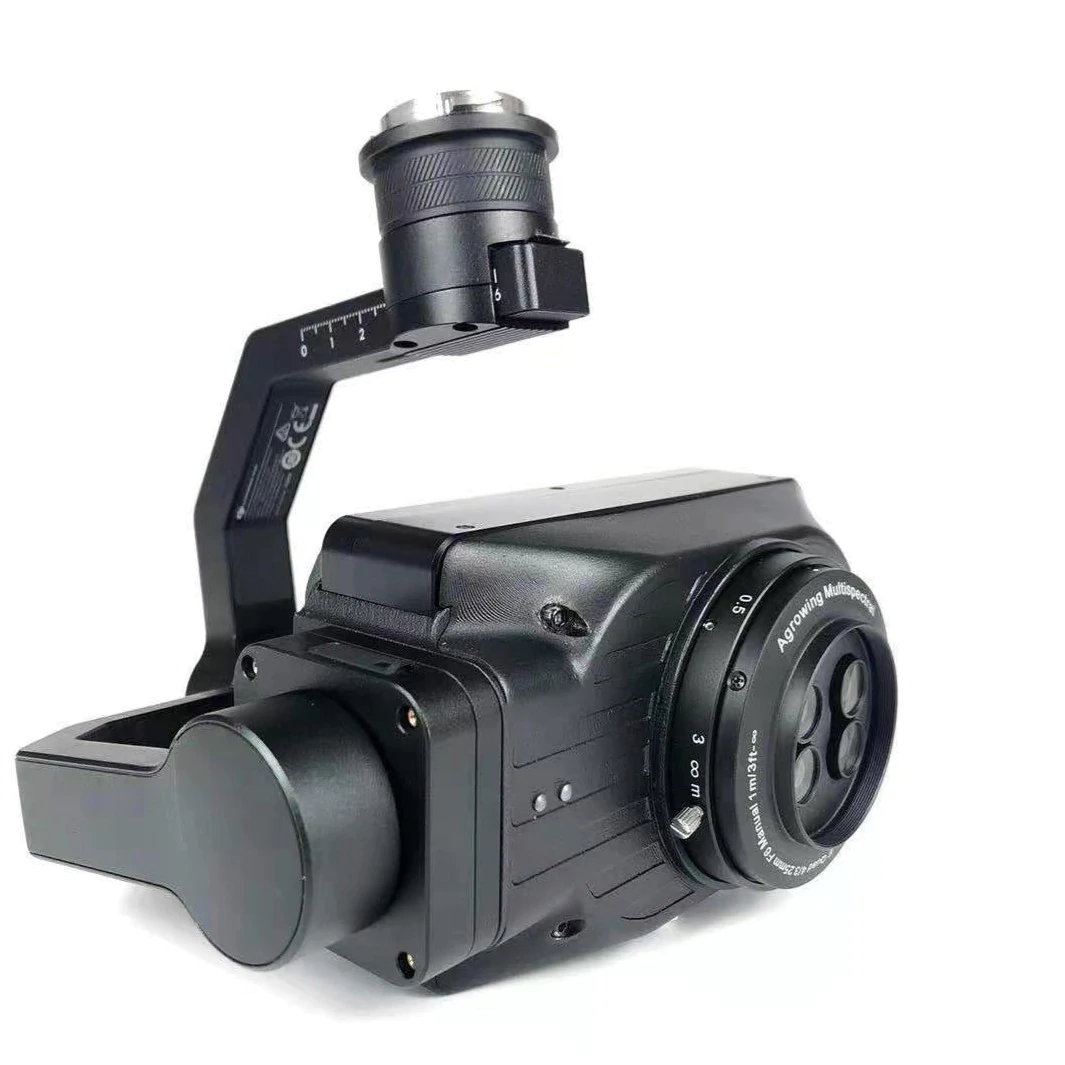

ADTi quad for Matrice 300

THE AWARD WINNING SENSOR - REPACKED



Designed for DJI M300 PSDK

Based on ADTI’s Surveyor Max 61S

(repacked Sony A7RivA camera body)

<800 g. complete (body; lens; gimbal)

242 g. camera body

182 g. Quad lens

10 Narrow Bands

for Full-Frame E-Mount

8 Megapixel per band with 42MP FF sensor

12 Megapixel per band with 61MP FF sensor.

Dual purpose: Can be used also as a standard RGB mapping camera with a clip-in IR-cut filter.

For additional details click on ADTi’s logo on the left.



Type:

Quad lens single mount

Field of view:

Diagonal 45.90 Horizontal 35.0 Vertical 26.60

TV distortion:

<1%

Multi Spectral Chroma Bands

30nm 20nm and 15nm* wide
405;430;450;550
560;570;650;685
710;850

* customized for best performance

Relative
Illumination:

68%

Effective focal length:

25mm

Iris:

fixed F6

Focus type and range:

Manual 2m - infinity

Lens dimension: (ØxLxW)

60x35.2 mm

F number:

6.0

Lens weight:

182gr

Total sensor weight including lens

424 gr

ff

Agrowing's Alpha 7Rxxx based sensor has two resolution versions. The A7Riv based sensor is of 12 Megapixels per band, while the A7Rii/iii based sensor is of 8 Megapixels per band.

ff

Agrowing's 12MP per band Quad Kits incvlude cleaning tools and also a IR-Cut 615nm filter, which enables using the camera as a standard Alpha 7Rxxx camera with any Sony FF compatible lens.
